Float Switch

£22.20 Including VAT
£18.50 (Ex. VAT)
✅ Save 5% on orders £500+ or 10% on £1K+*. Applied at checkout.
Adding to cart… The item has been added

Brand: MAC3

SKU:
KPM03-RE

Float switches enable you to automatically control the water level in your water tank.

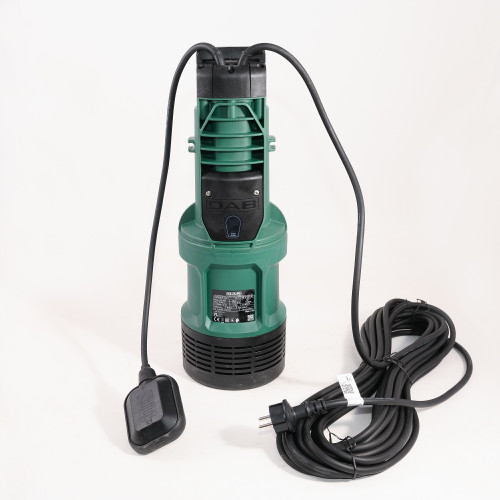

A float switch will automatically switch your pump on or off when the water reaches a specified level. They therefore make an ideal partner product for our range of submersible pumps. The pump goes in the tank and automatically stops when approaching empty ensuring that the pump is never left in a 'run-dry' state. It restarts again when the tank reaches a fill height. Whilst most quality pumps, including our range of pumps, have run-dry protection this only ensures that the pump itself is not harmed by running dry. It does not help restart the pump when it has run-dry or moved over to reset mode. The only way of ensuring that the pump never gets into a run-dry state to start with is with a float-switch.

The body of this float switch from Mac3 is made of recycled plastic.

They are 2-way, meaning they switch when either up or down depending on how they are wired to your pump.

it comes with 3m of 3 core PVC cable (3x1). It can be used for filling or emptying according to the cables that have been connected.

The Float is a double liquid proof chamber for maximum reliabilty.

Due to it's size, this Float Switch is the most versatile and can be used in most situations. It is a great general purpose Float Switch.

The switch angles are +45o/-45o.

Ideal for:

  • Rainwater harvesting,
  • Submersed surface and underground installation.
  • Above ground tanks,
  • Tank transfer.

Technical Information

  • Microswitch Features: 16(4)A 250V
  • Operating Temperature: 0oC to 50oC
  • Protection Rating: IP68
  • Switch Angles: +45o/-45o
  • Float Dimensions; 81 x 131 x 41.5mm
  • Float Weight: 154g (without cable)
  • Float Volume: 244cm3
  • Max Depth: 1 bar
  • Float Housing Material: Non-toxic polypropylene (PP), Colouring: Non-toxic, Green and Grey
  • Cable Material: PVC 3X1
  • Cable Length: 3m  (contact us for 5m and 10m lengths)
